M20 LED Handrail Lighting System 1.5W Symmetrical Or Asymmetrical Light Beam

The M20 LED Handrail Lighting is engineered to provide a flawless, continuous line of light that integrates perfectly into modern handrail systems. Its innovative design ensures the lamp sits flush with the handrail surface, creating a sleek, unobtrusive, and elegant lighting solution that enhances both safety and aesthetics without compromising the structure's clean lines.

Crafted from premium stainless steel, the M20 is built for longevity and performance in both indoor and outdoor environments. With an IP67 protection rating, it is completely dust-tight and protected against temporary immersion, making it ideal for a wide range of demanding applications.

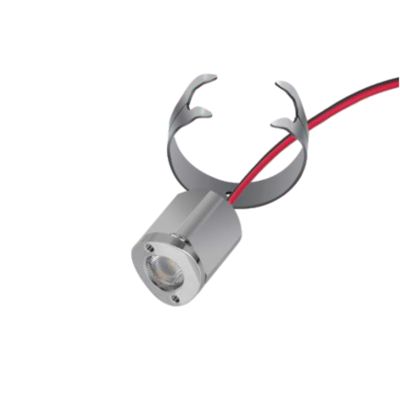

• Flush, Integrated Design: A built-in mounting clip ensures the lamp is held securely flush with the curved surface of the handrail. This creates a seamless appearance, eliminating protrusions for a superior aesthetic finish.
• Universal Handrail Compatibility: Specifically designed to fit standard handrail diameters of Ø42.4mm, Ø48.3mm, and Ø60.3mm, offering flexibility for various architectural projects.
• Robust & Weather-Resistant Construction: The stainless steel housing provides exceptional corrosion resistance and durability, backed by an IP67 rating for reliable performance in all weather conditions.
• Installation & Design Flexibility: Compatible with both 12V and 24V DC LED power supplies (Class 2), allowing for easy integration into new or existing low-voltage systems. We recommend a maximum connected power of 100W per run for optimal performance.
• Tunable White Light: Available in a range of color temperatures from warm white (2700K) to cool white (6000K), enabling precise control over the ambiance and mood to suit any architectural or design requirement.

• Model: M20 Handrail Light
• Housing Material: Stainless Steel
• Mounting: Integrated clip for flush recessed mounting
• Suitable Handrail Diameters: Ø42.4mm, Ø48.3mm, Ø60.3mm
• Input Voltage: 12V / 24V DC (Class 2)
• Maximum Connected Power: ≤ 100W (Recommended)
• Color Temperature: 2700K - 6000K
• Ingress Protection: IP67

• Staircase Handrails
• Balcony and Terrace Railings
• Public Walkways and Bridges
• Commercial Atriums & Interior Balconies
• Hotels, Resorts, and High-End Residential Projects

The M20 Handrail Lighting system is the definitive choice for architects and designers seeking a discrete, powerful, and reliable lighting solution that merges seamlessly with the architecture itself.
